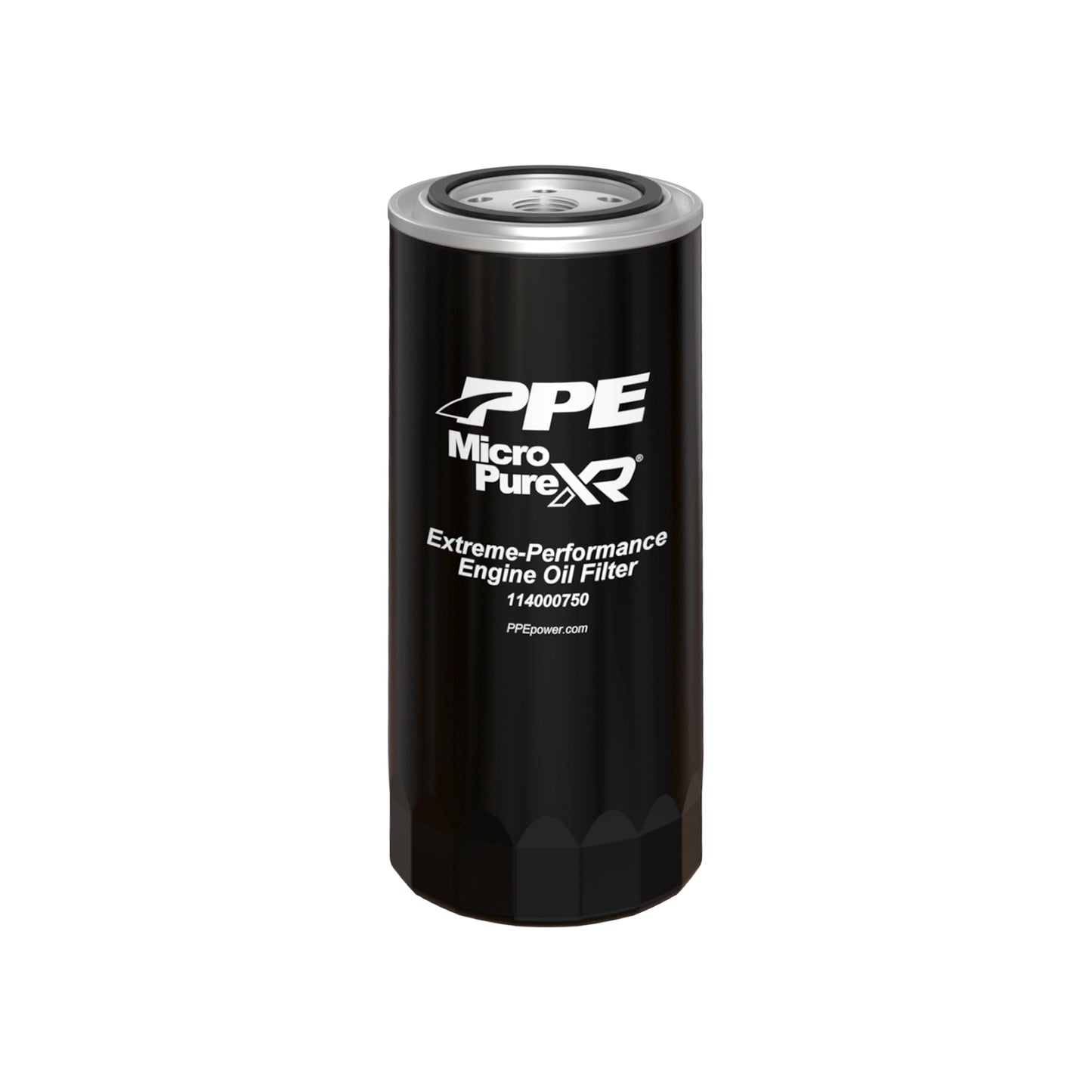

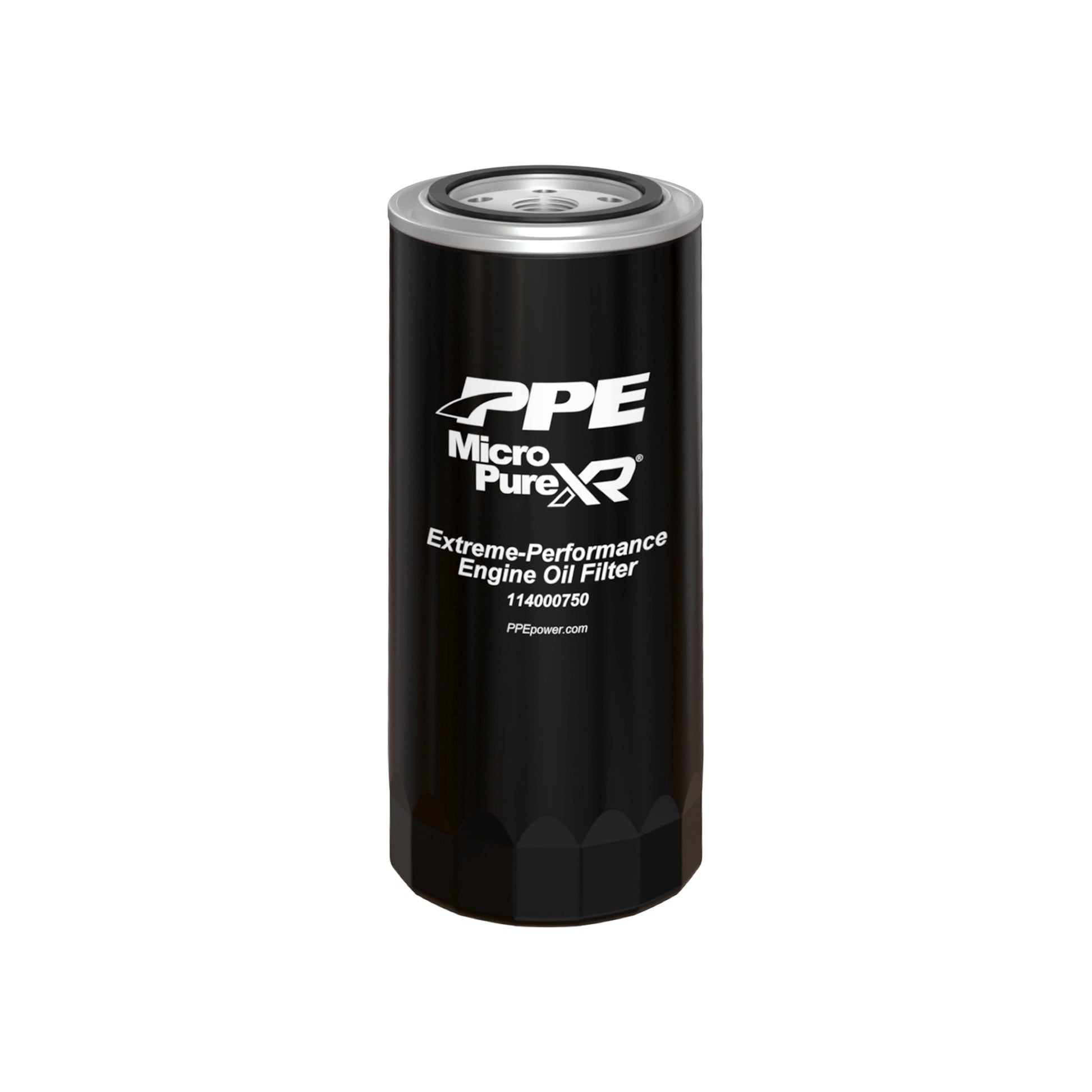

2020-2026 GM 6.6L Duramax MicroPure XR® Engine Oil Filter

PPE’s upgraded filter provides 522 square inches of filtration area, a 100% increase over the OEM filter. The specially engineered ultra-fine synthetic microfiber MicroPure XR® media achieves a 5-micron nominal rating. An integrated high-temperature rated neodymium magnet also allows the PPE filter to capture ferrous particles, preventing them from clogging the media, extending filter and oil life. The use of a heavy-duty coil spring ensures a secure seal between the media end cap and the base plate, eliminating dirty oil blow-by and maximizing filtration performance.

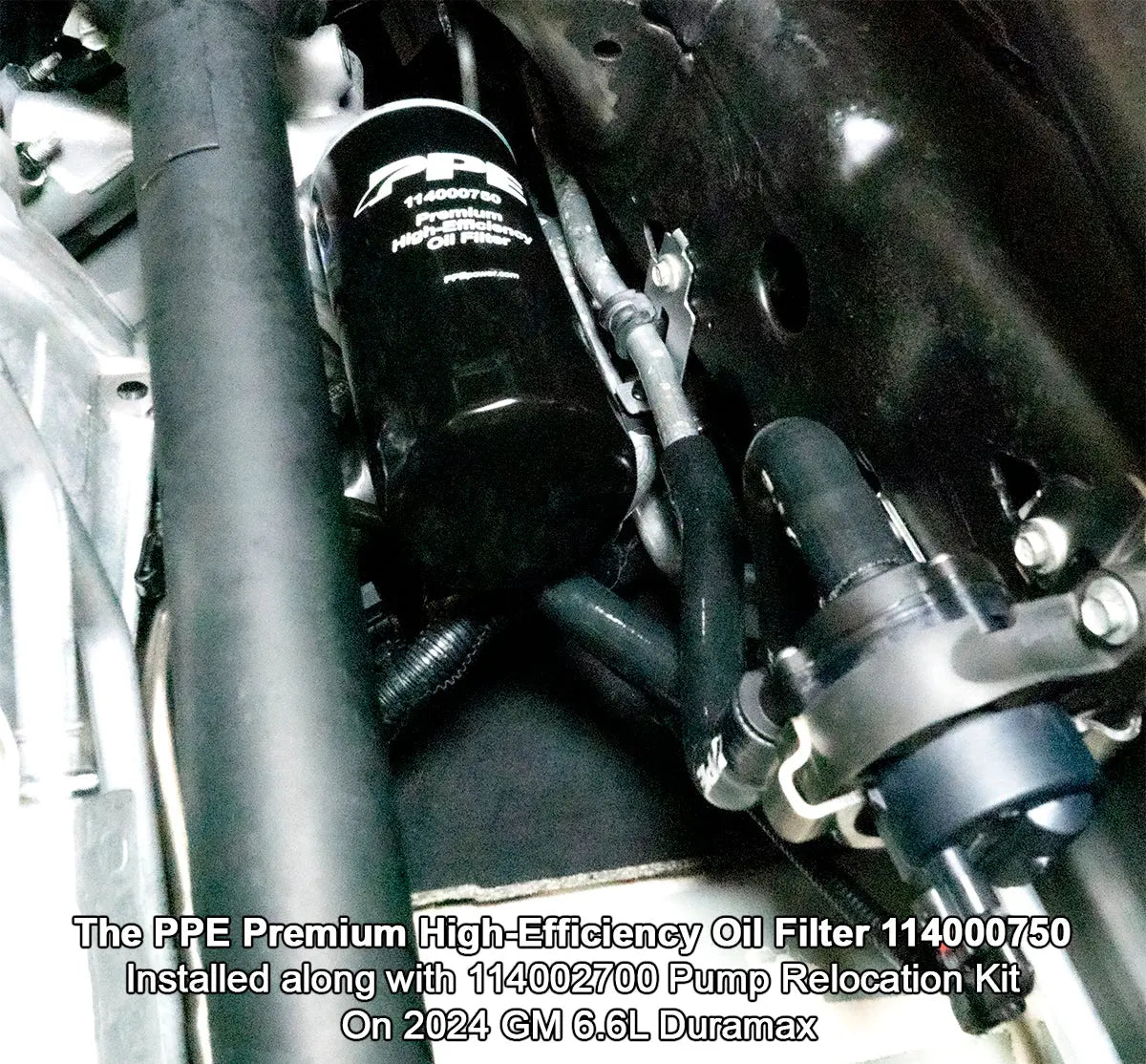

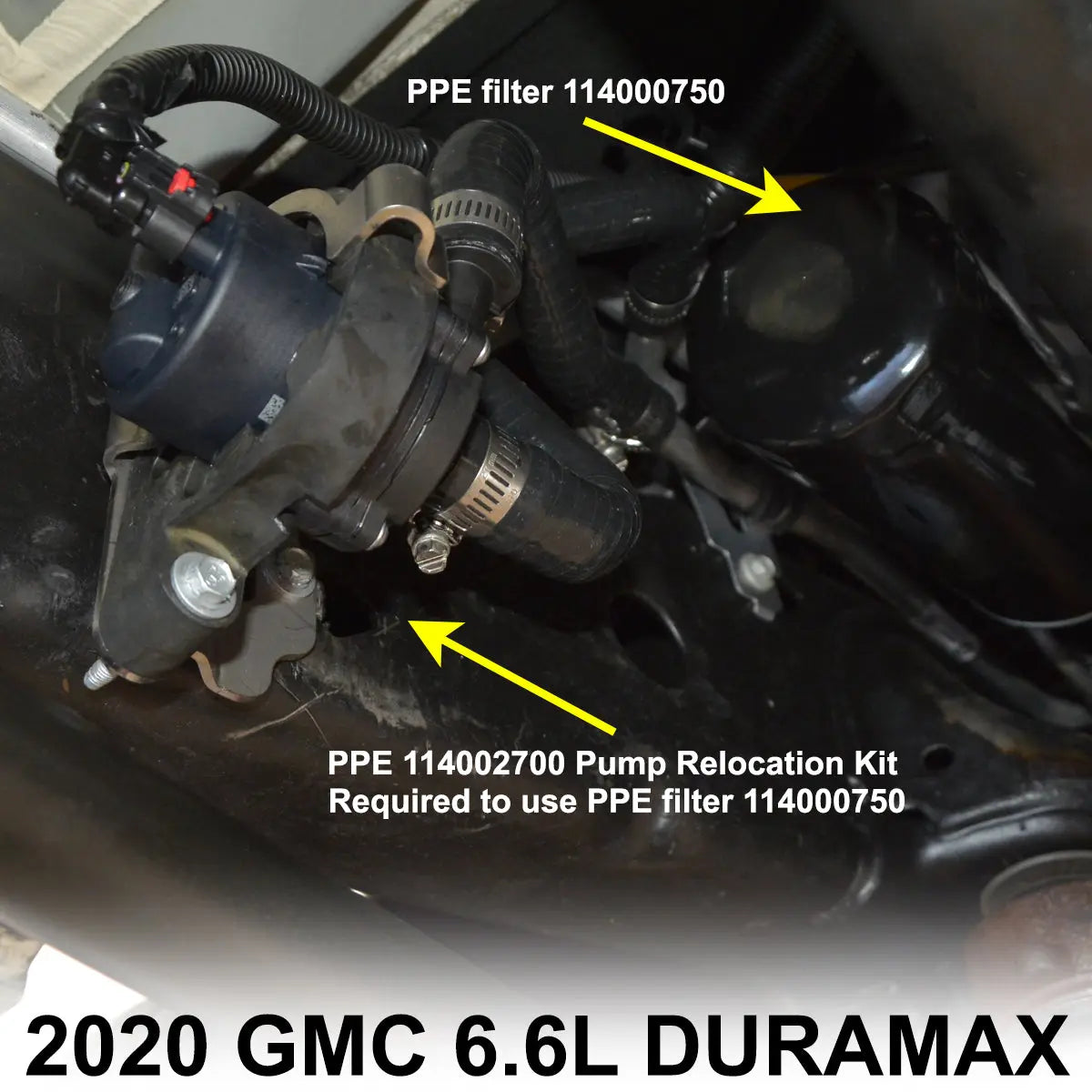

Note: 114002700 Fuel Coolant Pump Relocation Bracket Kit is required for the install of this deep filter.

FEATURES

• MicroPure XR® filtration with a 5-micron nominal rating
• 522 Square inches of ultra-fine synthetic microfiber media, a 100% increase over the stock filter
• Integrated high-temperature rated neodymium magnet captures ferrous particles, providing extra engine protection
• Built-in bypass valve with precision coil spring and steel-NBR poppet
• High-strength steel base plate with increased thread engagement and large oil passages
• Durable metal center tube provides excellent media support and pressure resistance
• TorqSTOP™ Technology prevents over-tightening and reinforces the gasket against high oil pressures
• Silicone anti-drainback valve delivers superior protection during engine start-ups
• Heavy-duty coil spring ensures a secure seal and prevents oil blow-by, maximizing filtration performance
• Pleat-locking spiral bead keeps media pleats evenly spaced for consistent filtration performance
