Turbo surge is an unstable compressor condition that shows up as fluttering, chirping, or oscillating boost pressure instead of a smooth power delivery. Occasional surge during quick throttle changes is usually harmless, but persistent surge under load can shorten turbo life. The first move is to monitor boost with a gauge, avoid sustained wide-open throttle while the condition is active, and log when it happens before doing any testing.
TL;DR:
- Tight compressor maps and downstream restrictions, such as clogged filters or closed valves, significantly increase the risk of surge in diesel turbo systems.
- Faulty variable geometry turbo actuators or wastegate control issues destabilize turbine speed, leading to airflow reversal and oscillating boost pressure.
- Listening for chirping or fluttering sounds and observing oscillations on the boost gauge help distinguish surge from normal turbo lag symptoms.
- Proper diagnostics involve boost logging, checking for codes P2263 and P0299, and inspecting actuators, sensors, and intake/exhaust restrictions before considering turbo hardware replacement.
- Correcting mechanical restrictions, matching compressor wheels to actual airflow needs, and using emission-compliant tunes are effective ways to prevent or address surge.
What causes turbo surge in diesel engines
Turbo surge happens when the compressor cannot maintain steady airflow at the pressure ratio it is being asked to produce. Instead of flowing forward smoothly, air stalls and reverses momentarily inside the compressor housing, creating the oscillation drivers hear and feel. Several mechanical and control issues can push a compressor into this unstable zone.
A tight compressor map is one of the more common culprits. Every compressor wheel and housing combination is engineered around a specific flow range, and when that range is narrow, there is less margin before surge sets in, according to research on compressor surge behavior. Downstream restrictions or sudden valve closures compound the problem: when the throttle or a wastegate snaps shut quickly, the compressor keeps producing pressure with nowhere for the air to go, and flow reverses.
Variable geometry turbo (VGT) actuator faults are another frequent cause on newer diesels. When the actuator cannot control turbine speed properly, the compressor side loses the stability that active VGT control is designed to provide. Intake or exhaust restrictions, including a clogged diesel particulate filter, a collapsed charge pipe, or a fouled intercooler, choke airflow and can trigger the same fluttering symptoms. Owners dealing with restriction issues may find it useful to understand how a DPF actually works and clogs before assuming the turbo itself is at fault.
Tuning changes and aggressive fueling can also erode the built-in surge margin engineers designed into the system, according to Ford’s technician guidance for the 7.3 Powerstroke turbo, which warns that performance enhancers can push turbos past their intended operating range. Worn bearings or low oil pressure can mimic surge symptoms too, since a wobbling shaft changes how the wheel interacts with the housing.
- Tight compressor sizing reduces the flow range before surge begins.
- Sudden valve closures or downstream restrictions send air flow backward through the compressor.
- Faulty VGT or wastegate actuators destabilize turbine speed control.
- Clogged filters, collapsed piping, or a fouled intercooler restrict airflow in ways that mimic surge.
- Aggressive tuning or worn bearings can push the system past its designed stability margin.
How to recognize turbo surge: sounds, boost patterns, and quick checks
Surge has a distinct signature once you know what to listen and look for, and separating it from other turbo complaints saves time and money.
- Listen for the sound. A chirp, flutter, or a sharp “bark” from the compressor housing, sometimes described as a pressure cooker releasing steam, is the classic audible sign of surge.
- Watch the boost gauge. Instead of a smooth rise and steady hold, the needle oscillates rapidly, spiking and dropping in quick succession rather than showing gradual lag or a flat, low reading.
- Feel the drivability. Hesitation, bucking under load, or a sudden loss of power during acceleration often accompanies the audible and gauge symptoms, especially during quick throttle transitions or gear changes.
- Check for oil or leaks. Oil pooling in the intake tract or intercooler points to a bearing or seal problem rather than pure surge, while collapsed hoses or loose clamps can produce a whistling leak that gets mistaken for compressor bark.
Readers unsure whether they are dealing with surge or ordinary turbo lag can compare symptoms in this breakdown of turbo lag causes and fixes, since the two conditions get confused often but call for different repairs.
Diagnostics: an ordered workflow and which codes to check
A structured approach saves time and avoids replacing parts that were never the problem. Start by recording boost behavior with a mechanical or digital gauge and try to safely replicate the exact conditions where surge appears, whether that is a specific RPM range, gear, or load.
From there, pull any stored codes. Diagnostic trouble codes such as P2263 (turbo boost system performance) and P0299 (turbo underboost) diagnostic trouble codes frequently accompany surge complaints and point toward airflow or actuator faults rather than a failed turbo outright. When those codes show up on a Ford diesel, it is worth checking Ford TSB 18397, which addresses lack of power and engine surge tied to exactly those two codes and lays out a standardized diagnostic path.
- Log boost gauge behavior and try to reproduce the surge condition under controlled, safe driving.
- Pull OBD-II codes: P2263 and P0299 are common indicators tied to boost performance and underboost.
- Cross-reference manufacturer TSBs, such as Ford TSB 18397, when codes and symptoms line up.
- Inspect VGT linkage, wastegate rods, EBP valves, and MAP or boost sensors for wear, corrosion, or sticking.
- On certain Powerstroke models, check the ICP (injection control pressure) sensor since it can produce overlapping symptoms.

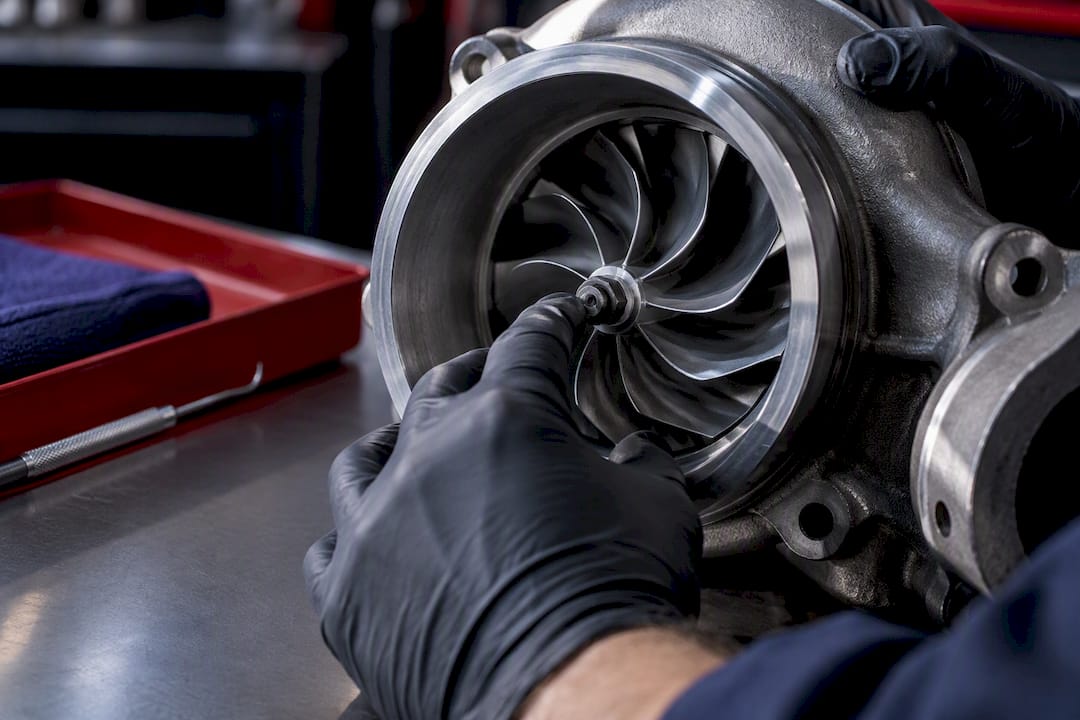

If actuator and sensor checks come back clean but surge persists, the turbo itself may need to come off the truck for a bearing play and compressor wheel inspection. Technician guidance for the 7.3 Powerstroke turbo notes that many turbos get replaced unnecessarily when the real fault lies in intake restriction, exhaust backpressure, or oil supply, so ruling those out first avoids an expensive misdiagnosis.
Fixes that reduce surge while staying emission compliant
Once the cause is identified, the fix should match it rather than jumping straight to a turbo swap. Mechanical restrictions get corrected first: cleared intake and exhaust paths, repaired collapsed hoses, and replaced seals or worn bearings often resolve mild surge without touching the turbo hardware itself.
When the root cause is a compressor map mismatch, the more durable fix is a matched compressor wheel and housing combination sized for the truck’s actual airflow needs. Changing wheel geometry or housing volume shifts where the compressor’s stable operating range sits, which restores the surge margin that a mismatched combination erodes, according to Accelleron’s analysis of surge and turbo life. This is a system-level fix, not a single-part swap, so getting the pairing right matters more than picking the biggest wheel available.
Actuator and sensor faults call for repair or recalibration, not removal. A sticking VGT actuator or a failed EBP valve should be fixed or replaced, since active turbine speed control plays a real role in keeping the compressor stable during transient events, per the surge behavior research cited earlier.
Tuning deserves a direct warning. The EPA prohibits aftermarket parts and tunes whose main effect is to bypass emissions controls, and enforcement actions against sellers and installers of defeat devices can carry significant penalties. Owners chasing more boost should look for compliant calibrations or OEM reflashes rather than tunes that disable emissions hardware, both to stay lawful and because those noncompliant tunes are a common way to push a compressor past its designed surge margin in the first place.
- Repair mechanical restrictions first: intake, exhaust, hoses, and seals.
- Match compressor wheel and housing to the truck’s real airflow requirements rather than oversizing.
- Repair or recalibrate VGT and EBP actuators instead of deleting them.
- Choose emission-compliant tunes or OEM reflashes over noncompliant calibrations.
- Treat lighter throttle inputs as a temporary workaround, not a permanent fix.
Pro Tip: If surge only shows up in one narrow RPM band, log that exact range before ordering parts, since it often points straight to a compressor map or actuator issue rather than a random component failure.
Driving around the symptom, such as easing off the throttle before the surge point, buys time but does not fix anything. Once codes, actuators, and restrictions have been ruled out, a hardware mismatch usually needs a proper repair rather than a driving habit change.
When surge becomes dangerous for your turbo
Occasional, mild surge during quick throttle lifts rarely causes damage. Persistent surge under load is a different story. The repeated flow reversal creates torsional loading on the turbo shaft and can overspeed the compressor wheel, conditions that can fracture blades or destroy bearings over time, according to Accelleron’s overview of surge and turbo damage.
Watch for physical warning signs. Metal particles in the oil or charge piping, excessive oil pooling past the seals, or contact marks between the wheel and housing all point to internal damage already underway. If any of these show up alongside audible surge, it is time to stop driving the truck and get it inspected rather than risk a catastrophic failure that can send debris through the intake or exhaust system.
How to prevent surge with regular maintenance
Most surge problems trace back to something preventable. Clean air and oil supply matter most: correct filtration, a healthy crankcase ventilation system, and oil that meets the right condition and pressure specs keep the turbo operating inside its designed range.
Keeping the exhaust path clear is just as important. Monitoring DPF regeneration cycles, watching for exhaust backpressure creep, and confirming EBP valve operation all reduce the odds of a restriction pushing the compressor into surge. Readers dealing with regeneration issues can find more detail in this guide to DPF operation and blockages.
Component selection matters too. Choosing turbo hardware sized for the truck’s actual use, rather than stacking unsupported modifications that overspeed the turbine, protects the surge margin engineers built in. Before adding power mods, it is worth reviewing a diesel performance upgrade checklist to understand how each change affects airflow balance.
- Keep air filters, crankcase ventilation, and oil condition within spec.
- Monitor DPF regeneration and exhaust backpressure regularly.
- Match turbo hardware to the truck’s real use instead of stacking unsupported mods.
- Run boost, EGT, and oil pressure gauges, and inspect the turbo after any major modification.
Pro Tip: A simple three-gauge setup, boost, EGT, and oil pressure, catches most surge-related problems long before they turn into a bearing failure.
Shop-proven tips from Standard Diesel Direct
Guidance in this article draws on the same technical education Standard Diesel Direct applies when selecting parts for its catalog, informed by hands-on work at its Nevada diesel shop where components get installed and tested rather than just listed. On common 7.3 Powerstroke setups, shop experience shows that surge tied to a mismatched compressor wheel and housing combination is frequently resolved by fitting a properly matched pairing sized for the truck’s actual airflow, rather than by defaulting to a full turbo replacement.
Several products address surge-prone fitments including turbine housing kits, turbo upgrade kits combining compressor wheels and wastegates, and standalone compressor wheels for turbochargers. Every recommendation here assumes emission-compliant repairs, never noncompliant deletions or tunes that disable required hardware.
Parts and fitment resources for fixing turbo surge
Getting the right compressor wheel and housing pairing starts with correct fitment, and Standard Diesel Direct stocks parts built around exactly the surge-related repairs covered above.
- The Turbine Housing Kit for 94-97 Ford 7.3L fits early 7.3L trucks needing a corrected turbine housing to restore proper turbine speed control.
- The Turbo Upgrade Kit for 99.5-03 Ford 7.3L Big-Head pairs a wastegate and compressor wheel combination for trucks needing a matched replacement rather than a piecemeal fix.
- The Compressor Wheel Turbocharger suits owners whose housing is sound but whose wheel geometry no longer matches their airflow needs.
Before ordering or booking a shop visit, gather a boost log showing when surge occurs, the vehicle’s year and engine, and a clear description of the sounds and drivability symptoms. That information lets a technician confirm the diagnosis and match the correct part the first time. Owners running diesel or UTV platforms can browse fitment-specific parts across various lineups online.
Sources
This article draws on EPA tampering guidance, Ford technician documentation and TSBs, and published research on compressor surge and VGT control behavior.
- How surging affects your turbocharger — Accelleron (Charge Magazine)
- Turbocharger surge behavior for sudden valve closing downstream the compressor and effect of actuating variable nozzle turbine — IOPscience (2022)
- Technician Turbocharger Guide for the Powerstroke Engine (Ford 7.3)
FAQ
How to fix turbo surge?
Fixing surge starts with confirming the cause through boost logging and OBD-II codes, then correcting the specific issue, whether that is a restriction, a faulty actuator, or a compressor wheel and housing mismatch. A matched compressor wheel and housing swap resolves surge tied to airflow mismatch in many cases, according to research on compressor surge behavior, while actuator faults need repair rather than replacement of the whole turbo.
What causes turbocharger surging?
Turbo surge happens when compressor airflow becomes unstable, often from a tight compressor map, a sudden downstream valve closure, or a VGT actuator that has lost proper control of turbine speed. Restrictions in the intake or exhaust path, along with tuning that pushes boost past the designed surge margin, can trigger the same instability.
Why is my 7.3 Powerstroke surging under acceleration?
On the 7.3 Powerstroke, surge under acceleration commonly ties to VGT or wastegate actuator issues, intake or exhaust restrictions, or a compressor wheel and housing pairing that no longer matches the truck’s airflow. Ford TSB 18397 addresses exactly this symptom alongside codes P2263 and P0299 and outlines a structured diagnostic path.
What causes a diesel engine to surge?
A diesel engine surges when the turbocharger’s compressor cannot maintain stable airflow, which shows up as fluctuating power and boost rather than smooth acceleration. Common triggers include restricted airflow, actuator or sensor faults, and mismatched turbo hardware that reduces the compressor’s stability margin.
